Tigmint

Correcting Misassemblies Using Linked Reads From Large Molecules

Shaun Jackman @sjackman

Lauren Coombe, Justin Chu, Rene L Warren, Benjamin P Vandervalk, Sarah Yeo, Zhuyi Xue, Hamid Mohamadi, Joerg Bohlmann, Steven JM Jones, Inanc Birol

RECOMB-Seq 2018-04-20
https://sjackman.ca/tigmint-recomb-slides
Funded by Genome Canada · Genome BC · NIH · NSERC

Shaun Jackman

Birol Bioinformatics Technology Lab
BC Cancer Genome Sciences Centre · Vancouver, Canada
@sjackman · github.com/sjackman · sjackman.ca
Shaun’s head shot

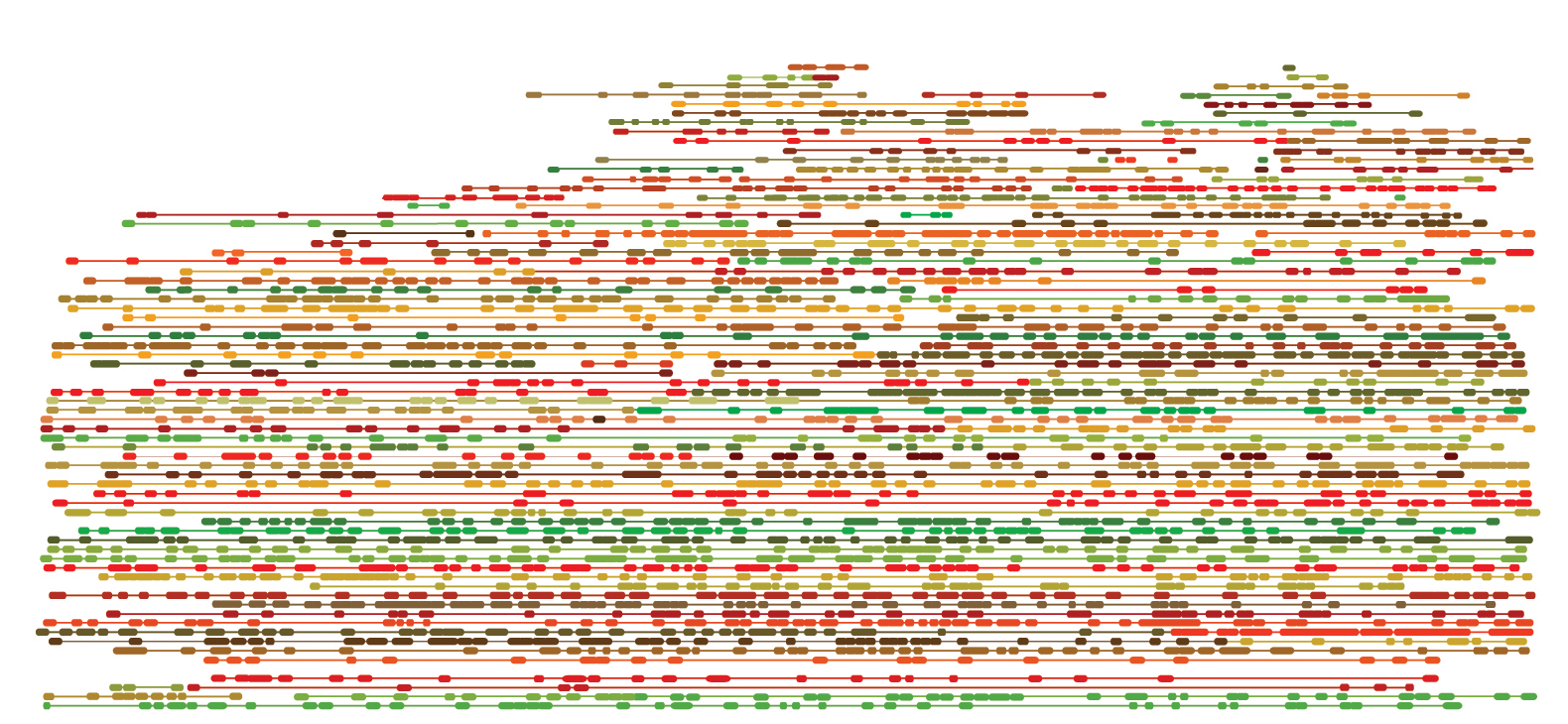

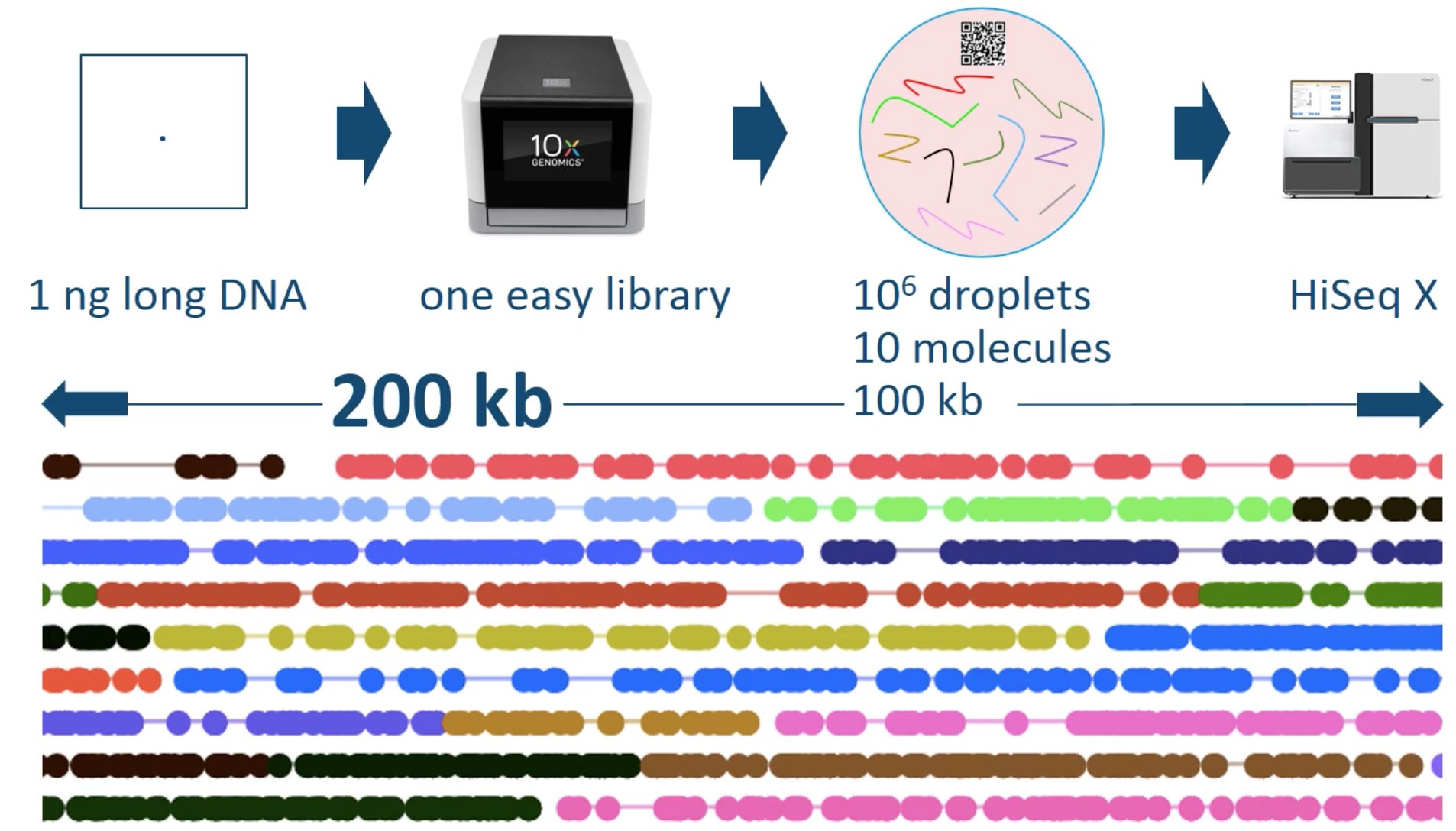

Linked Reads

Tools for Linked Reads

Align linked reads
Lariat (Long Ranger) · EMA
Structural variants
Long Ranger · GROC-SVs · NAIBR · SVenX · Topsorter
Phase variants
Long Ranger
Genome sequence assembly
Supernova
Scaffolding
ARCS · Architect · Fragscaff · Scaff10x

https://github.com/johandahlberg/awesome-10x-genomics

Contigs and scaffolds come to an end due to…

repeats
sequencing gaps
structural variation
misassemblies

Misassemblies limit contiguity

particularly for highly contiguous assemblies.

Most scaffolding tools do not correct misassemblies.

Correct misassemblies

Scaffold

https://github.com/bcgsc/tigmint

Method

Map reads to the assembly
Group reads within d bp of each other (d = 50 kbp)

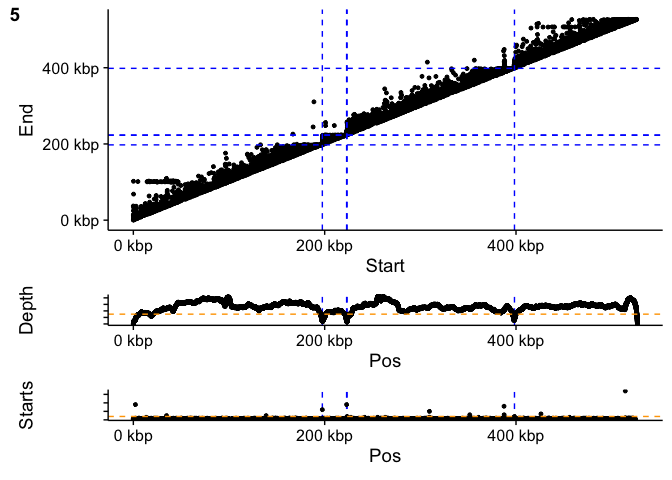

Infer start and end coordinates of molecules
Construct an interval tree of the molecules
Each w bp region ought to be spanned by n molecules
(w = 1 kbp, n = 20)
Identify regions with fewer than n spanning molecules
Cut sequences at regions with insufficient coverage

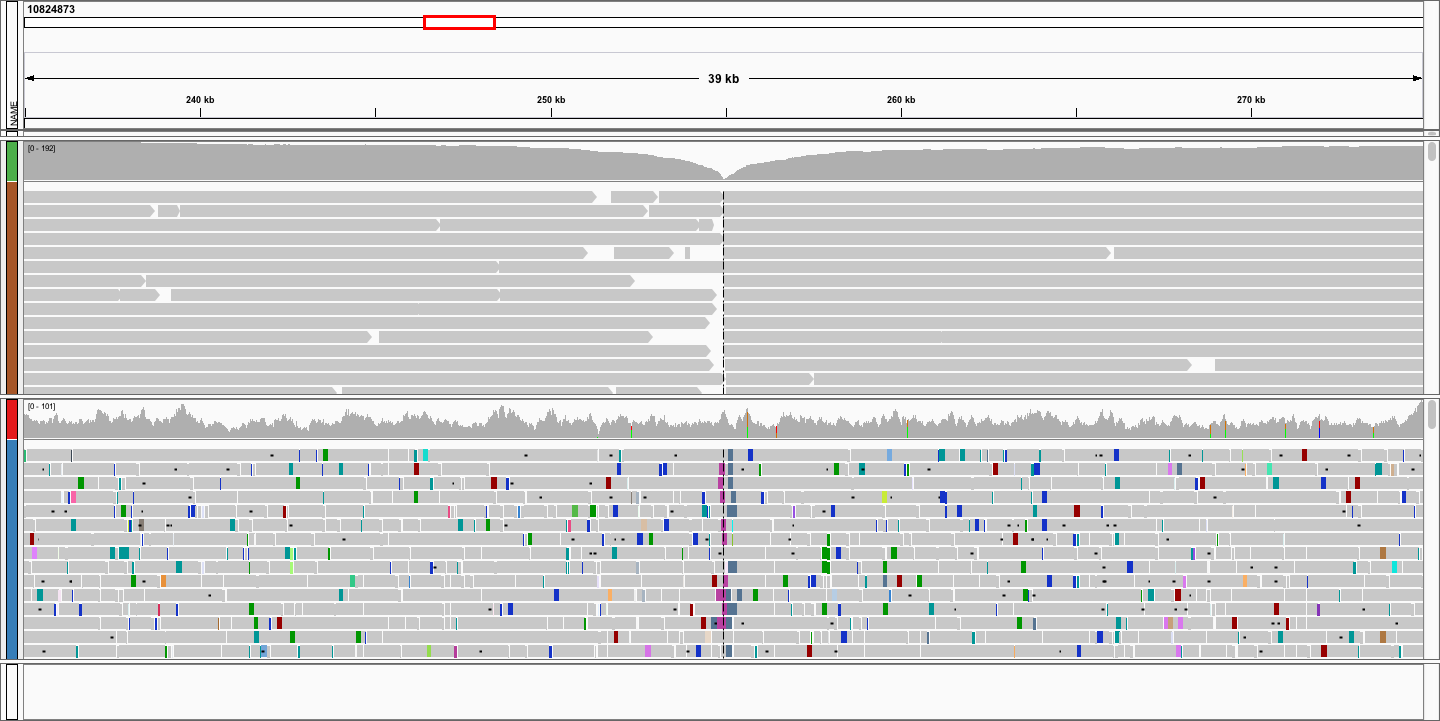

Tracks from top to bottom
molecule coverage, molecules, read coverage, reads

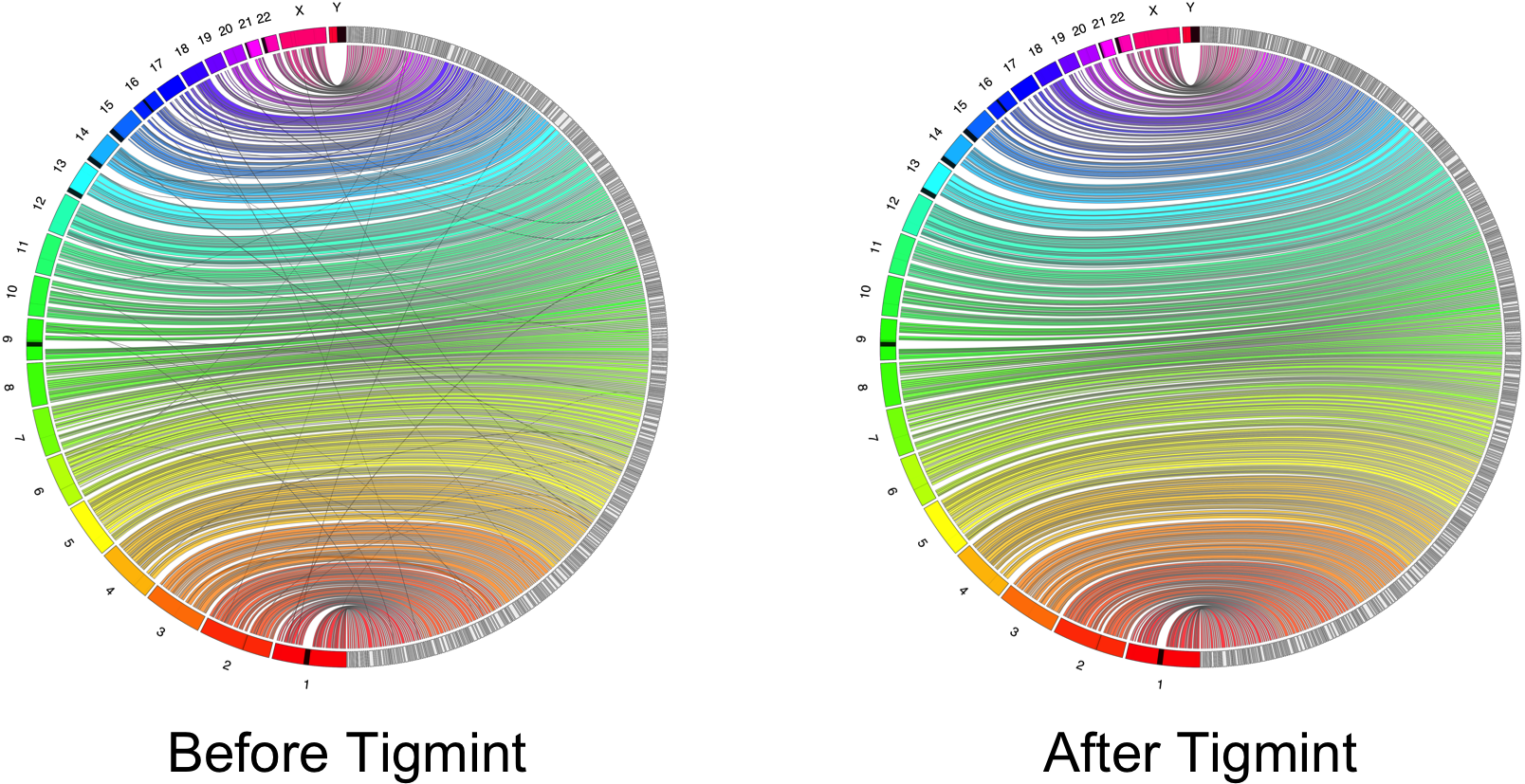

https://github.com/JustinChu/JupiterPlot

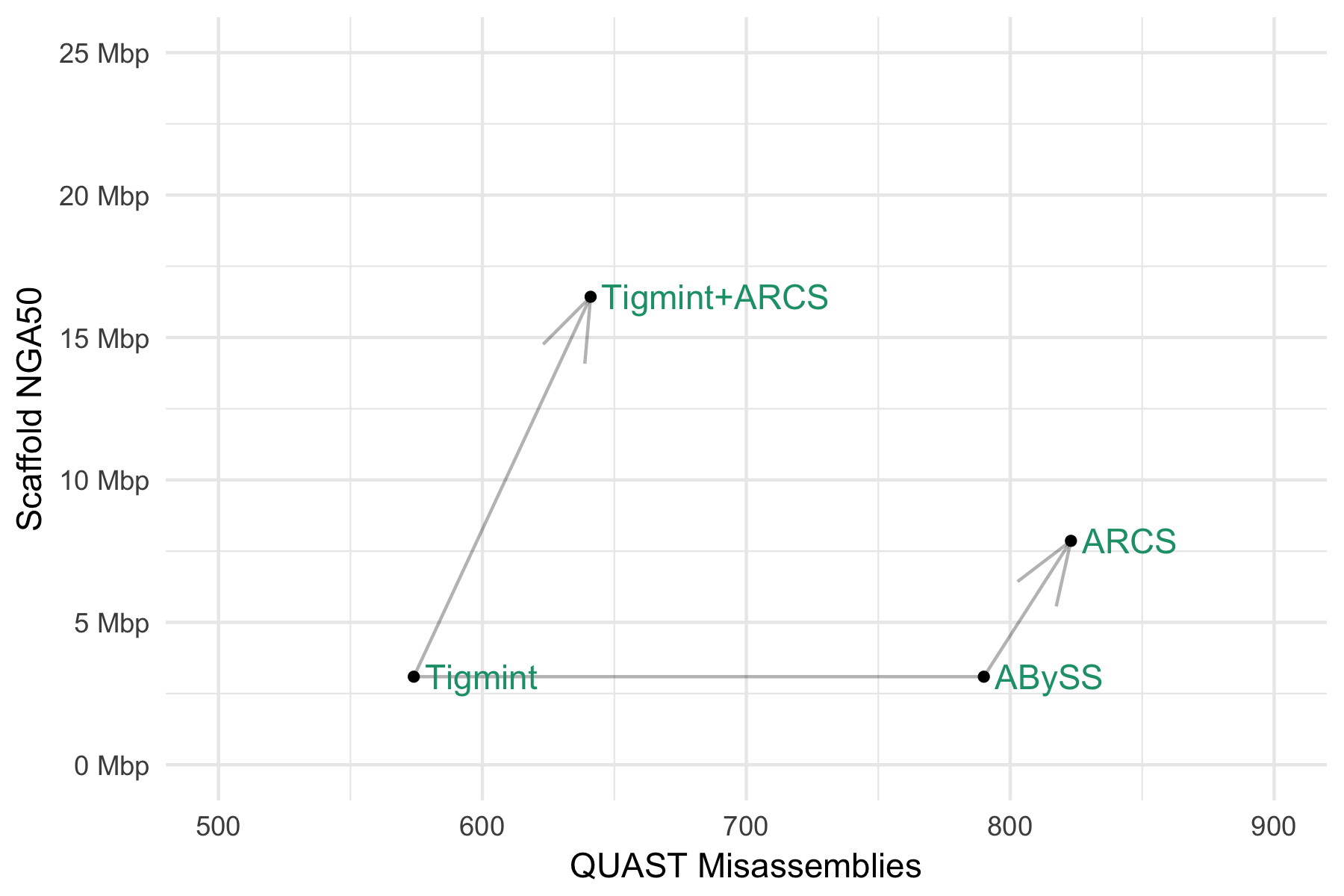

Human genome assembly (GIAB HG004 NA24143)

Assemble human HG004 with PE, MP, and linked reads
Scaffolding with ARCS improved NGA50 from 3 to 8 Mbp
Tigmint reduced misassemblies by 216 (27% reduction)
Tigmint + ARCS improved NGA50 over five-fold to 16 Mbp

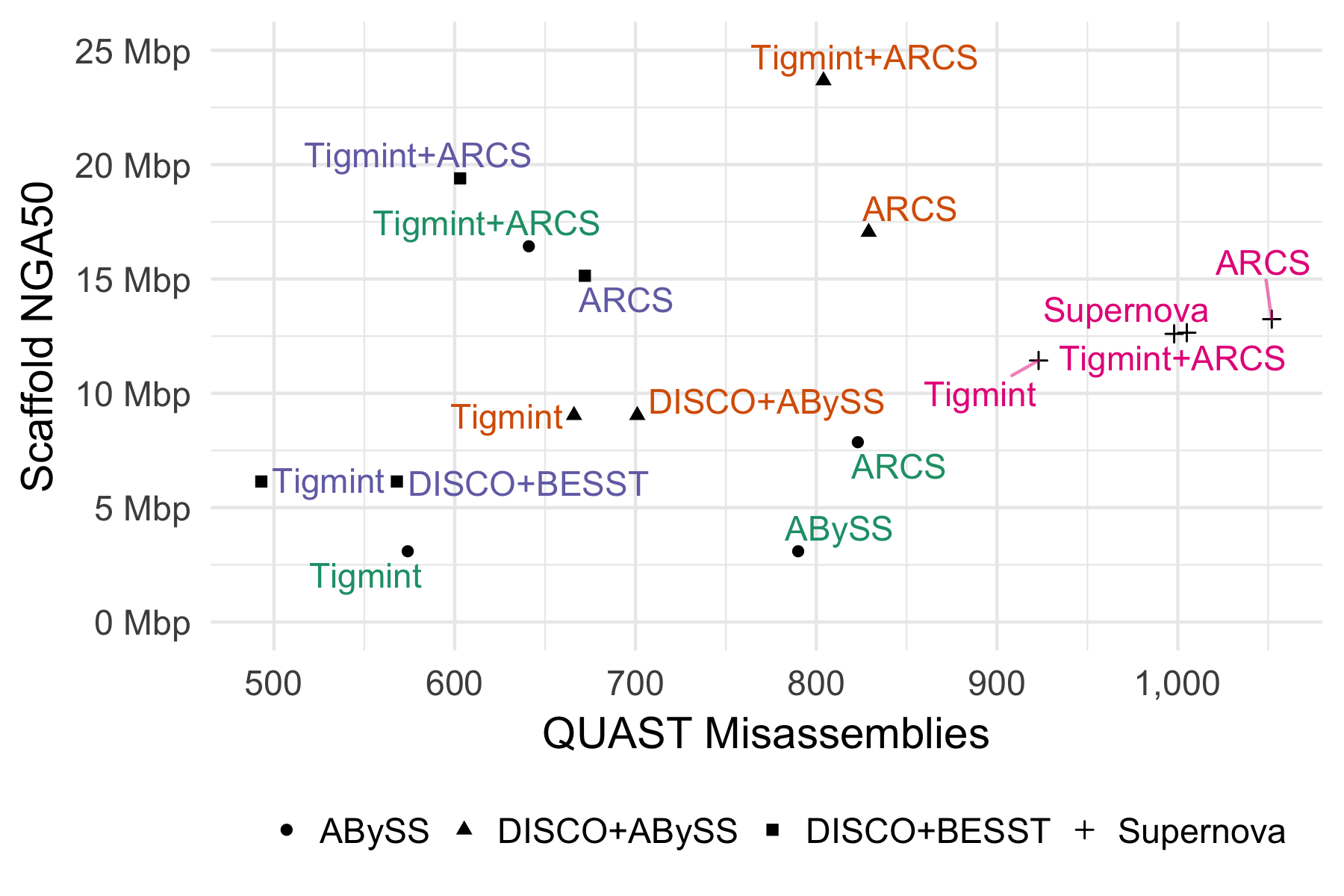

Human genome assemblies (GIAB HG004 NA24143)

Note: Supernova used only linked reads, others PE+MP+LR.

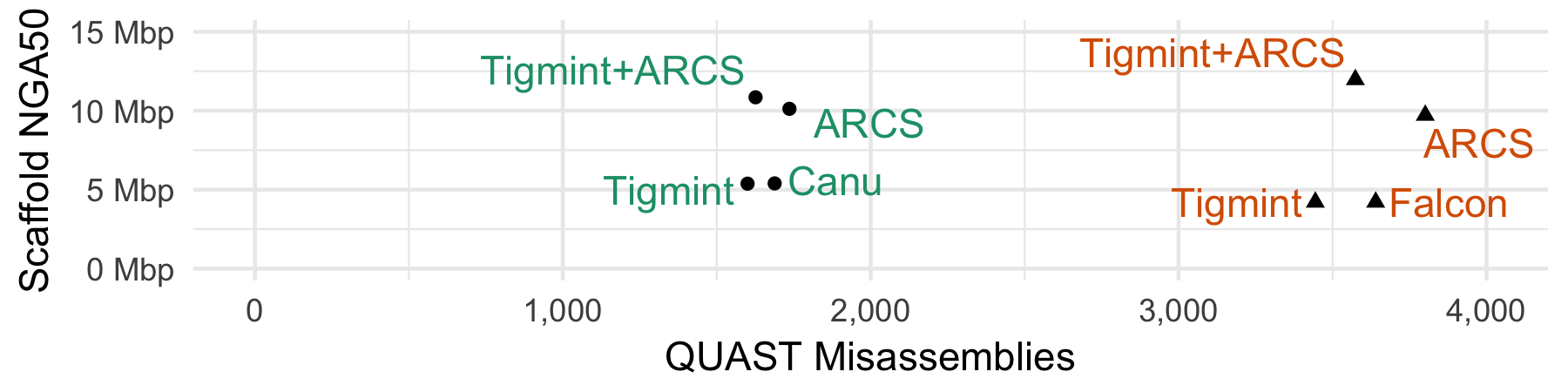

Corrects and improves long read assemblies too!

Sequencing	Nanopore	PacBio
Assembler	Canu	Falcon
NGA50 before Tigmint + ARCS	5.4 Mbp	4.2 Mbp
NGA50 after Tigmint + ARCS	10.9 Mbp	12.0 Mbp
Improvement	2.0x	2.9x

Time and Memory

bwa mem Map reads to assembly
5½ hours, 17 GB RAM, 48 threads
tigmint-molecule Group reads into molecules
3¼ hours, 0.08 GB RAM, 1 thread
tigmint-cut Identify misassemblies and cut sequences
7 minutes, 3.3 GB RAM, 48 threads

Conclusion

Scaffolding after correcting with Tigmint yields an assembly both more correct and more contiguous.

Linked reads permit cost-effective assembly of large genomes using high-throughput sequencing.

fin
